Excavator

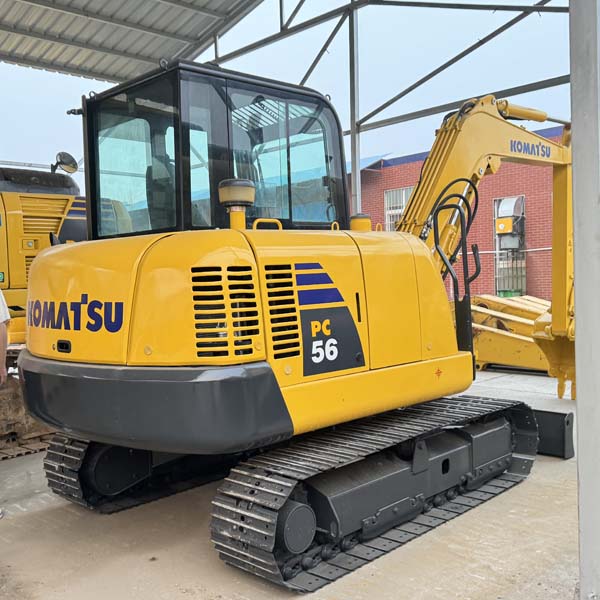

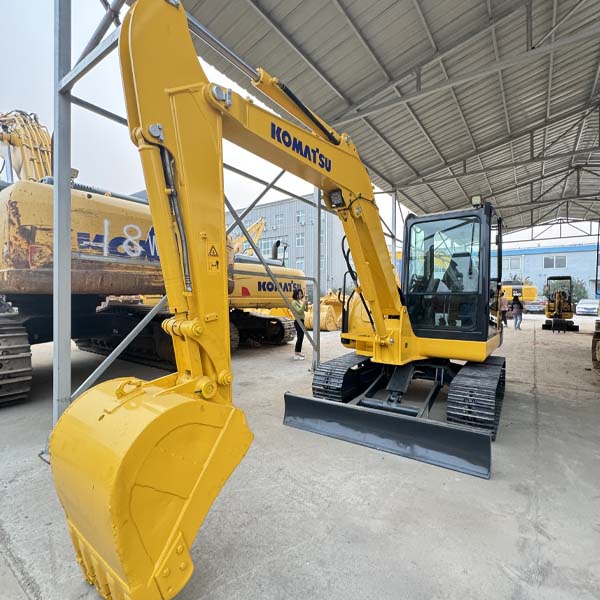

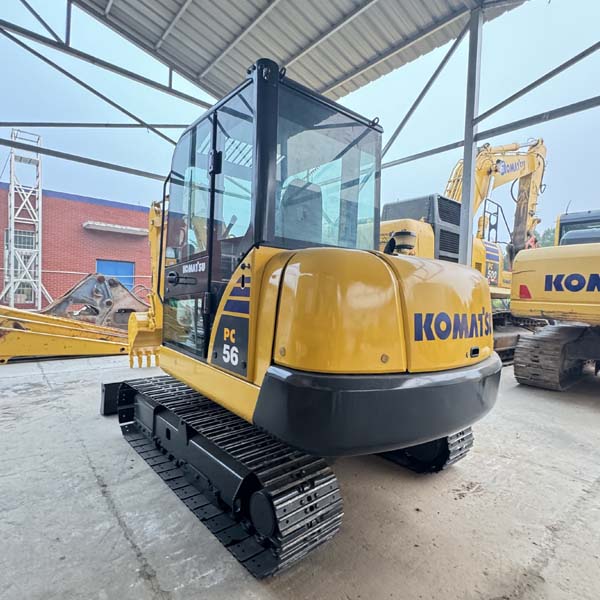

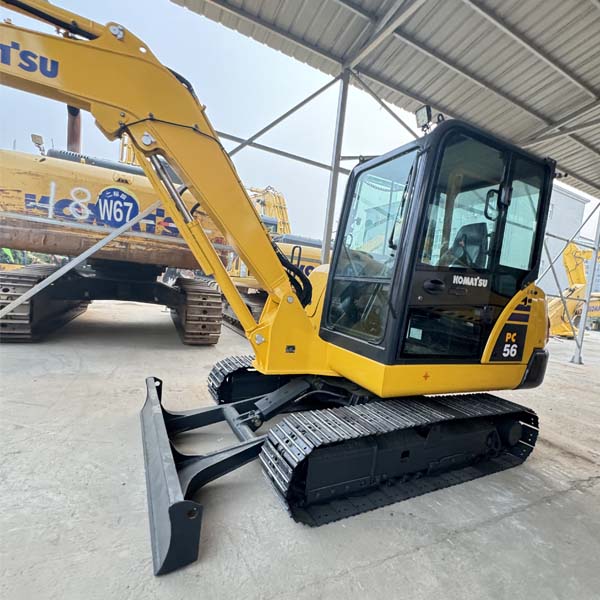

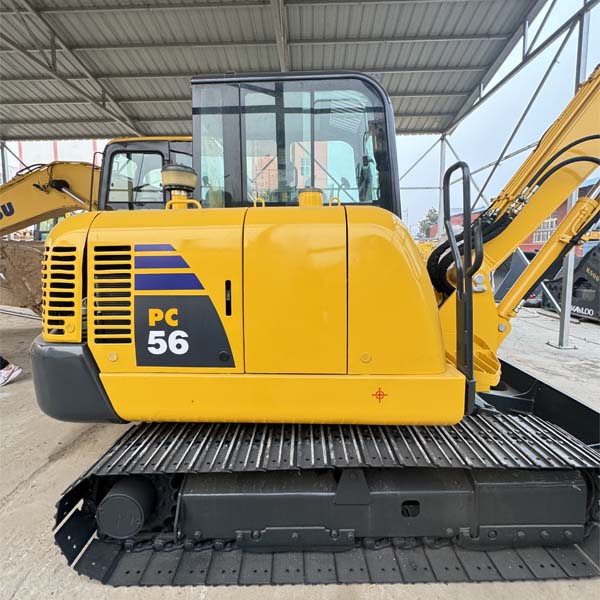

Used KOMATSU PC56
Original ConditionLX-PC56
$9,500indicative asking price · negotiable
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Device model | PC56-7 |
|---|---|
| Short name of the model | 56 |
| Crane tonnage (t) | 5.3 |
| Walking style | Caterpillar |
| Dump body form | Backhoe |
| Working condition use | General-purpose |
| Model | S4D87E-1 |
| Type | Water-cooled, direct injection |
| Rated power (kW) | 36.5 |
| Rated speed (r/min) | 2300 |
| Total Displacement (L) | 2.434 |
| Number of cylinders (each) | 4 |
| Cylinder diameter x stroke (mm) | 67*102.4 |
| Engine brand | Kobayashi |
| Working weight (kg) | 5300 |
| Shovel bucket capacity (m³) | 0.055~0.22 |
| Walking speed (high/low) (km/h) | 4.1/2.6 |
| Rotating speed (rpm) | 9 |
| Ground pressure (Kpa) | 30.7 |
| Shovel digging force (kN) | 39 |
| Digging force of the bucket (kN) | 24 |
| Length x width x height (in transport state) (mm) | 5935×1960×2550 |
| Track Ground Contact Length (mm) | 1980 |
| Total length of the track (mm) | 2500 |
| Track plate width (mm) | 400 |
| Minimum ground clearance (mm) | 1560 |
| Revolving radius at the rear end (mm) | 1650 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging radius of the cutting face (mm) | 5980 |
| Maximum digging depth (mm) | 5860 |
| Maximum Unloading Height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Shovel width x height (mm) | 700×355 |
| Bulldozer bucket lift or push depth (mm) | 430/330 |
| Fuel tank (L) | 120 |
| Hydraulic oil tank (L) | 37 |
| Engine oil change amount (L) | 7 |
| Main pump type | Variable capacity type plunger type*2+gear type*2 |
| Maximum flow rate of the main pump (L/min) | 51*2+32+12 |
| Walking hydraulic motor type | Variable camber*2 |
| Revolutionary Hydraulic Motor Type | Fixed plunger type*1 |
| Work hydraulic circuit (Mpa) | 26.5 |
| Walking hydraulic circuit (Mpa) | 26.5 |
| Revolutionary Hydraulic Circuit (Mpa) | 19.6 |
| Maximum pressure of the pilot system (Mpa) | 3.7 |
| Boom cylinder – bore x stroke (mm) | 1-90*686*55 |
| Shoe cylinder-cylinder diameter x stroke (mm) | 1*85*709*55 |
| Shovel cylinder-cylinder diameter x stroke (mm) | 1-75*580*50 |
Description
Komatsu PC56-7 excavator is equipped with a high-power turbocharged Komatsu S4D87E-1 engine, standard with a bulldozer, a variety of buckets are available for selection, two working modes are available for selection, and the working efficiency is greatly improved.
