Scissor Lift

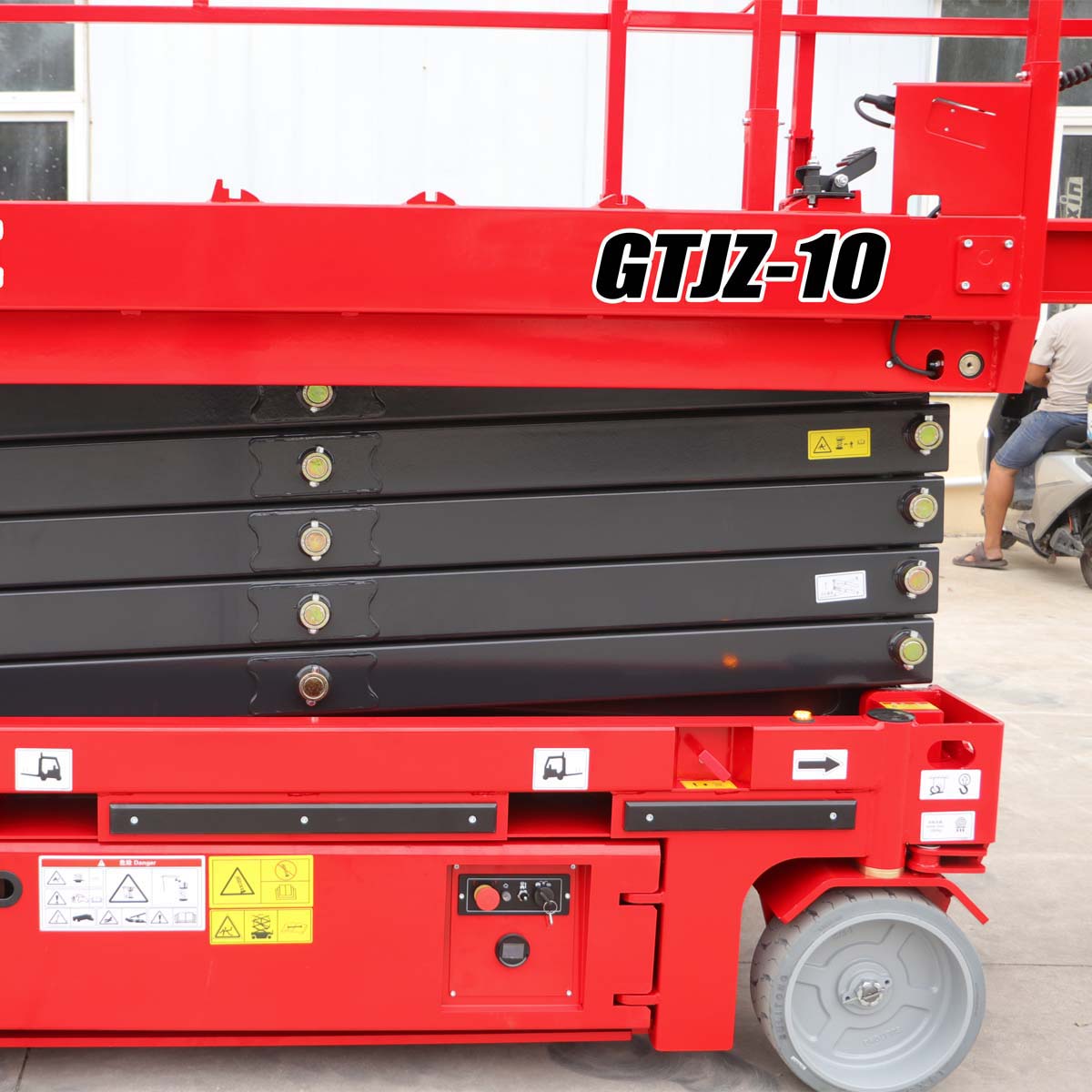

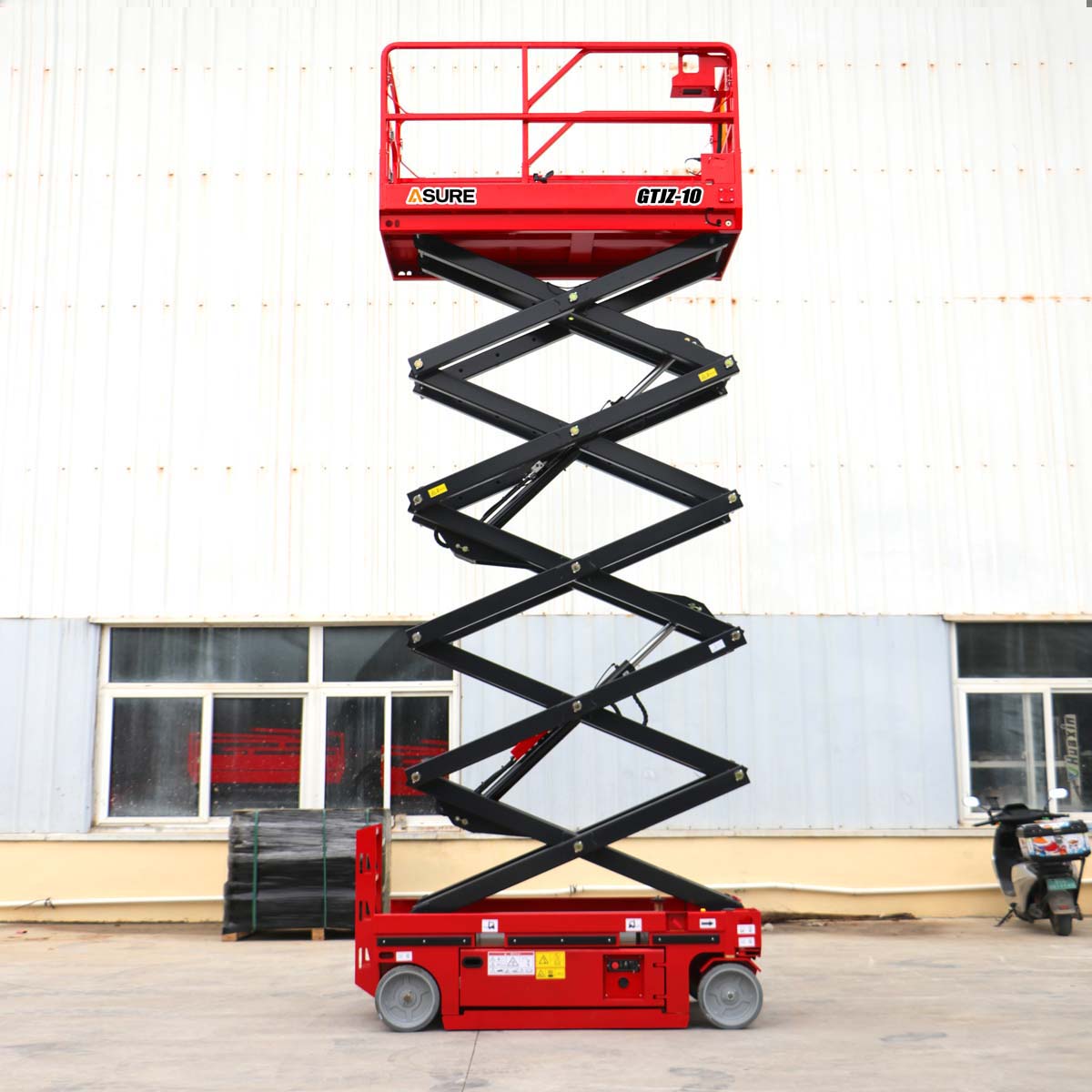

New ASURE GTJZ-10 Scissor lift
Brand-new ASURE BrandLX-GTJZ10
$4,700indicative asking price · negotiable
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model (Self-Propelled Hydraulic Drive) | GTJZ-10 |
|---|---|
| Maximum Working Height (A) | 12m |
| Maximum Platform Height (B) | 10m |
| Safe Working Load | 320kg |
| Safe Working Load of Extension Platform | 100kg |
| Working Platform Size (L×W×H) | 2.26×1.14×1.1m |
| Overall Dimension (C×D×E, Guardrail Unfolded) | 2.41×1.18×2.34m |
| Overall Dimension (C×D×F, Guardrail Folded) | 2.41×1.18×1.674m |
| Platform Extension Size (G) | 0.9m |
| Minimum Ground Clearance | 0.1/0.02m |
| Wheelbase (H) | 1.87m |
| Turning Radius (Inner/Outer Wheel) | 0/2.35m |
| Lifting/Driving Motor | 24V/4.5kw |
| Lifting Speed | 3-5m/min |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h |
| Storage Battery | 4×6V/200ah |
| Charger | 24V/30A |
| Maximum Climbing Capacity | 25% |
| Maximum Allowable Working Angle | 1.5°/3° |
| Tire | Φ381×127mm |
| Overall Machine Weight | 2600kg |
Description
The ASURE GTJZ-10 self-propelled hydraulic elevator is a core proprietary product of the brand, specially designed for medium and high-altitude operation scenarios. With a maximum working height of 12m and a comprehensive safety protection design, combined with high-quality core configurations, it provides efficient and stable high-altitude operation solutions for industrial maintenance, construction and other diverse scenarios.
