Excavator
Used ZOOMLION ZE205E
Original ConditionLX-ZE205E
$26,000indicative asking price · negotiable
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Product model: | Caterpillar excavator |
|---|---|
| Product power: | Traditional power |
| Shovel shape: | Backhoe |
| Product tons: | 20 tons |
| Gross weight of the machine in operation: | 20.3 tons |
| Bucket capacity: | 0.85 cubic meters |
| Luffing length: | 5700mm |
| Prong length: | 2925mm |
| Overall dimensions: | 9.5×2.8×3.02m |
| Track plate width: | 600mm |
| Track gauge: | 2200mm |
| Minimum ground clearance: | 440cm |
| Weighted clearance: | 1085mm |
| Rear end return radius: | 2840mm |

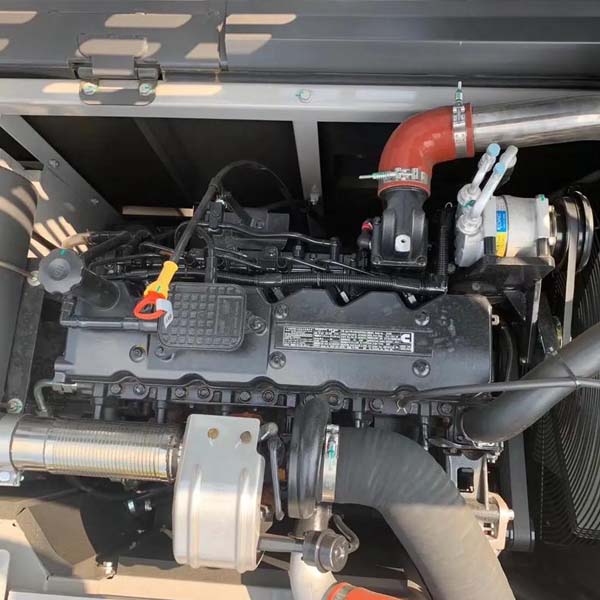

| Engine model: | Cummins B5.9-C (150hp) |
| Maximum output power: | 112kW |
| Main pump maximum flow: | 2x206L/min |
| Work hydraulic oil circuit: | 32.1 |
| Walking hydraulic circuit: | 35Mpa |
| Rotating hydraulic circuit: | 25.2Mpa |
| Fuel tank capacity: | 340L |
| Hydraulic oil tank: | 180L |
| Engine oil change amount: | 26L |
| Coolant: | 30L |
| Walking speed: | 5.5/3.3km/h |
| Bucket digging force | 140kN |
| Buckhorn digging force: | 100kN |
| Maximum traction: | 192kN |
| Maximum digging radius: | 9855mm |
| Maximum digging depth: | 6625mm |
| Maximum digging height: | 9715mm |
| Maximum unloading height: | 6865mm |
| Maximum vertical digging depth: | 5980mm |
Description
The Zoomlion ZE205E – 10 crawler hydraulic excavator in the 20T class has an operating mass of 21,300 kg and comes with a standard bucket capacity of 0.9 m³. The ZE205 is equipped with an advanced electronically – controlled system developed by Zoomlion, which optimizes power matching, resulting in lower hourly fuel consumption. Significantly, both its operational efficiency and fuel efficiency have been improved.
