Crane

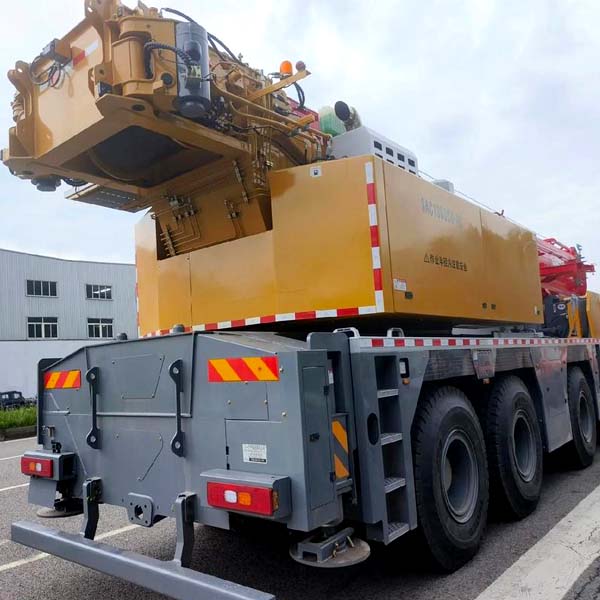

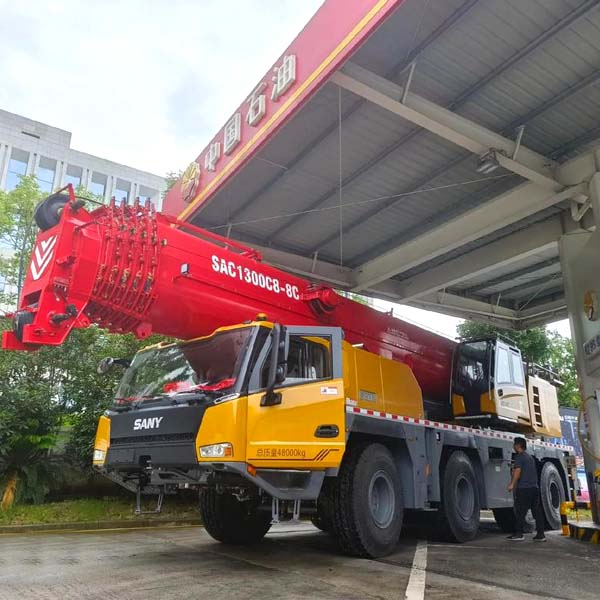

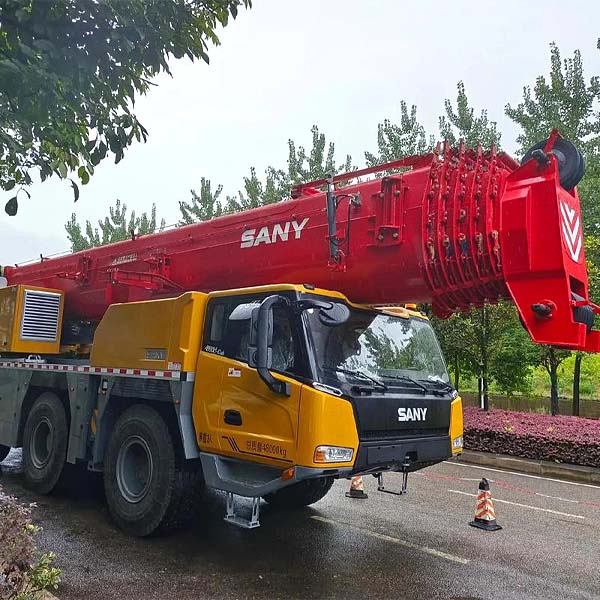

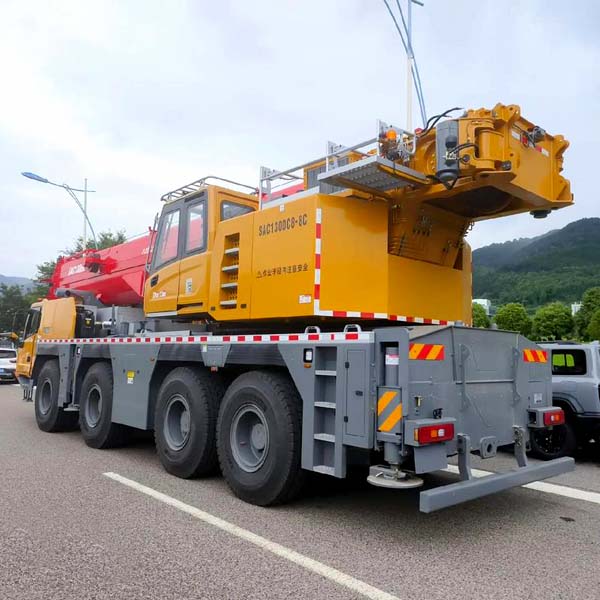

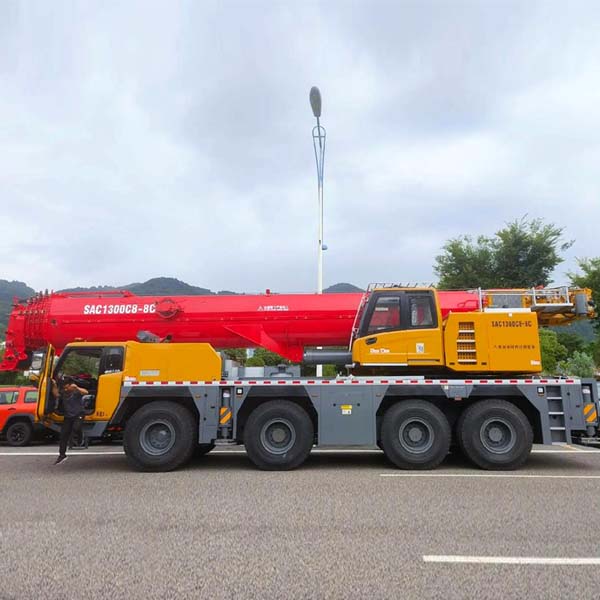

Used SANY STC1300C8-8
Original ConditionLX-STC1300C88
$102,200indicative asking price · negotiable
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Device model | STC1300C8 |
|---|---|
| Rated power (kW) | 316 |
| Rated torque (N·m/r/min) | 1985/1000-1400 |
| Driving condition self weight (total mass) (kg) | 54990 |
| Front axle load (kg) | 24000 |
| Front and rear axle load (kg) | 30990 |
| Rated total lifting capacity (kg) | 130000 |
| Outrigger span (longitudinal x transverse) (m) | 7.55×8.1(5.39) |
| Basic arm maximum lifting torque (kN·m) | 5145 |
| Maximum lifting moment of the longest main boom (kN·m) | 1940.5 |
| Single rope maximum speed (main winch) (m/min) | 135 |
| Single Rope Maximum Speed ( auxiliary winch ) (m/min) | 135 |
| Lifting arm luffing/desluffing time (s) | 70/100 |
| Lifting boom fully extended/fully retracted time (s) | 720/740 |
| Level outrigger extension/retraction time (s) | 30/25 |
| Vertical outrigger extension/retraction time (s) | 50/60 |
| Revolution speed (r/min) | 0-1.4 |
| Maximum speed (km/h) | 85 |
| Maximum climbing gradient (%) | 45 |
| Approach angle (°) | 17 |
| Departure angle (°) | 17 |
| Minimum turning radius (m) | 12 |
| Fuel consumption at 100 km (L) | ≤55 |
| Dimensions (length x width x height) (mm) | 16360x3000x4000 |
Description
Designed for ultimate mobility, this crane features a reinforced chassis and smart counterweight system enabling fast, hassle-free transport without major disassembly.
