Crane

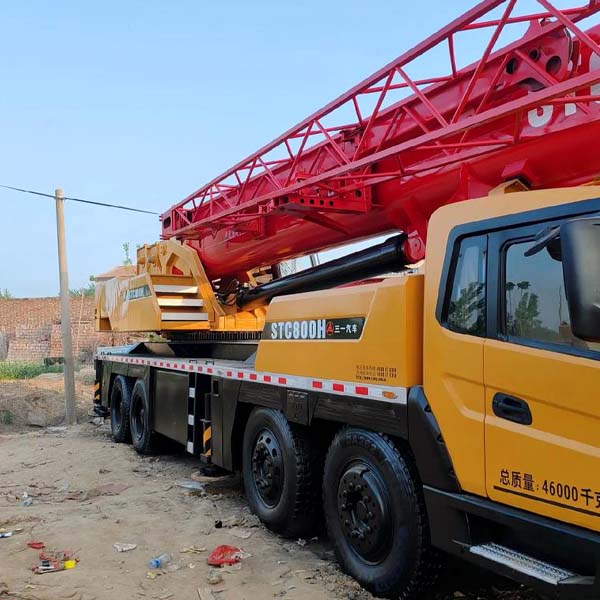

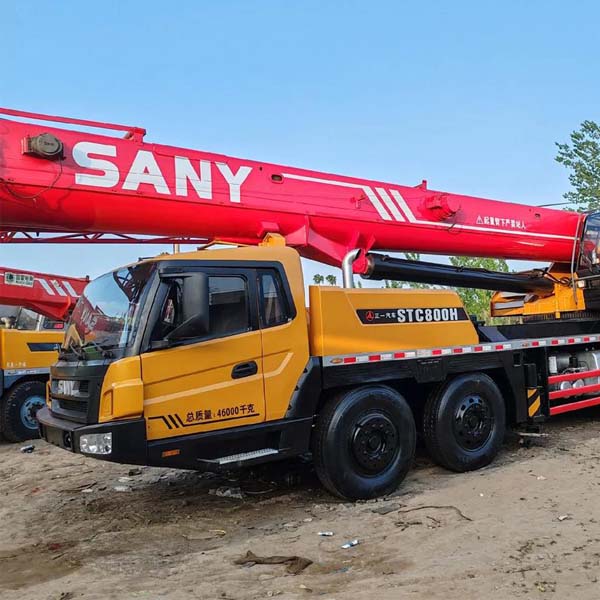

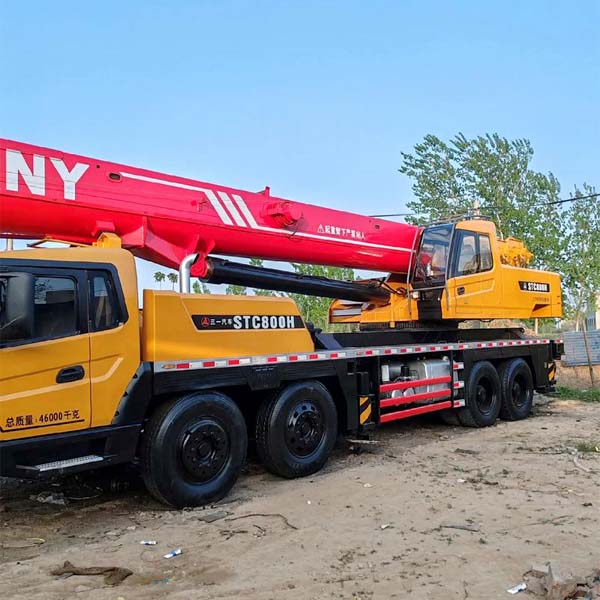

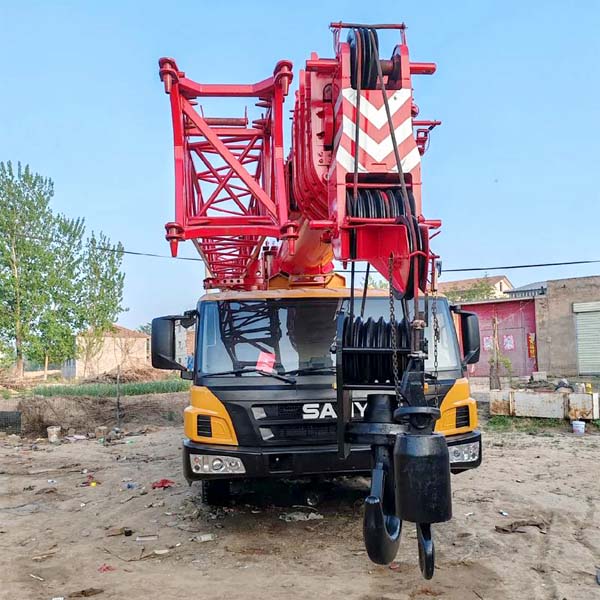

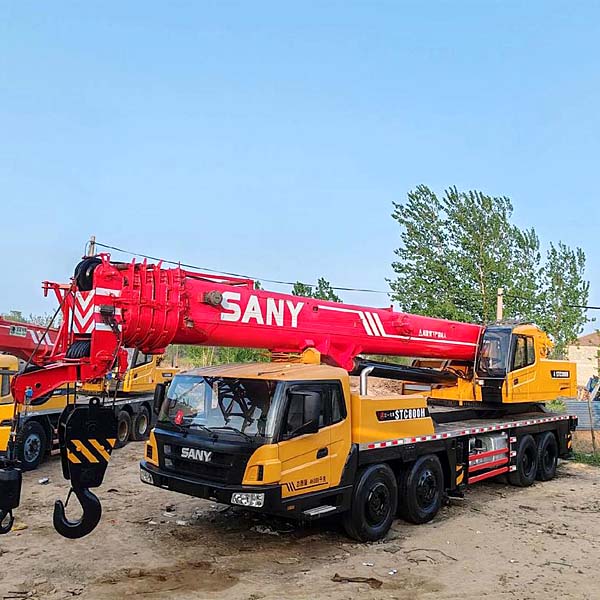

Used SANY STC800H
Original ConditionLX-STC800H
$65,500indicative asking price · negotiable
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Device model | STC800 |
|---|---|
| Rated power (kW) | 276 |
| Rated torque (N·m/r/min) | 1800 |
| Driving condition self weight (total mass) (kg) | 50000 |
| Front axle load (kg) | 24000 |
| Front and rear axle load (kg) | 26000 |
| Rated total lifting capacity (kg) | 80000 |
| Outrigger span (longitudinal x transverse) (m) | 6.43×8 |
| Basic arm maximum lifting torque (kN·m) | 3293 |
| Maximum lifting moment of the longest main boom (kN·m) | 1803 |
| Single rope maximum speed (main winch) (m/min) | 130 |
| Single Rope Maximum Speed ( auxiliary winch ) (m/min) | 130 |
| Lifting arm luffing/desluffing time (s) | 65/90 |
| Lifting boom fully extended/fully retracted time (s) | 140/160 |
| Revolution speed (r/min) | 0-1.8 |
| Maximum speed (km/h) | 80 |
| Approach angle (°) | ≥10 |
| Departure angle (°) | ≥14 |
| Minimum turning radius (m) | 12 |
| Fuel consumption at 100 km (L) | ≤44 |
| Dimensions (length x width x height) (mm) | 15290x2800x3880 |
| Outrigger longitudinal distance (m) | 6.43 |
| Boiler support transverse distance (m) | 8 |
| Boom length (m) | 50 |
Description
The all-new 80-ton truck crane combines a 50 m extra-long boom, reinforced chassis, and high-efficiency hydraulics to deliver exceptional lifting performance, fuel savings, and enhanced operator comfort and safety.
